Volvo B10M Operator’s Manual

Specifications & Wiring Diagram

I did not have access to an English language version of the Operator's Manual. This is not a reproduction of the original English language Volvo B10M Mk I Operator's Manual. It is a synthesis of the following Volvo publications:

B10M Mark I Operator's Manual, French edition.
B10M Mark II Operator's Manual, TP 9029/1 English 4500. 11.85.
Volvo B58 Operator's Manual, TP 2003/1 English 2500. 2.80
Volvo Service Bulletin 3-37-18, Wiring diagram for B10M from Chassis No. 503, May 1980

It does not include any official Volgren coachwork information.

Back to the Volvo B10M Operator's Manual index page

	Page
DATA PLATES	78
SPECIFICATIONS	79
INDEX	88

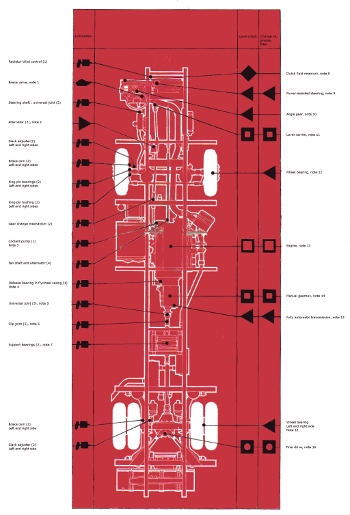

LUBRICATING SCHEME	90
WIRING DIAGRAM	92

TOC

78 Data plates

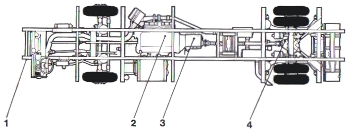

DATA PLATES

When contacting the dealer concerning your bus, or when ordering stock parts, always quote the chassis type designation and the serial number. In the matter of the engine, gearbox or rear axle, the designations and serial numbers should also be stated.

The chassis type and serial number are stamped on a plate at the very front of the left-hand frame member.
The engine type designation, part number and serial number are stamped on the top of the engine block behind the injection pump.
Type description and serial number of the gearbox:
Voith automatic transmissions: on a plate attached to the upper surface of the gearbox.
ZF and Allison automatic transmissions: on the right-hand side of the gearbox
ZF manual: the type designation and serial number are stamped on a plate fixed on the left side of the gearbox.
The final drive part number, serial number and reduction ratio are stamped on a plate on the right-hand side of rear axle casing.

The plate showing the vehicle's Gross Vehicle Mass (GVM): comes with the chassis

TOC

79 Specifications

SPECIFICATIONS

NEW INTERNATIONAL MEASURING SYSTEM

To meet the needs of technicians, and to nationally standardize measurements a system was finally established in 1960 and was given the name SI (System International d'Unites).

The Volvo Corporation has been introducing the SI-units into its new publications since 1972. Up to the time of its exclusive use, the SI-unit will be indicated first followed by the former unit in brackets. The largest new units are:

Output is given kilowatts (kW) instead of horsepower (hp)
100 kW = 135 h.p.

Force is given in Newton (N) instead of kilograms force (kgf).
100 N = 10 kp.

Torque is given in Newtonmetres (Nm) instead of metres-kilograms (m.kg).
100 Nm = 10 kpm.

Speed is given in revs per second (r/s) instead of revs per minute (r/min).
100 r/s = 6,000 r/min.

Pressure (in fluids and gases) is given in kiloPascals (kPa) instead of bars.

TOC

80 Specifications

GENERAL DATA

Length measurements in mm	B10M-55	B10M-60	B10M-65
Wheelbase	5,500	6,000	6,500
Overall chassis length	9,600	10,100	10,600
Front overhang	2.450	2.450	2.450
Rear overhang	1,650	1,650	1,650
Turning circle diameter (outer front wheel), in metres (with air suspension)	17.4	18.4	19.8

Width measurements in mm	7.5 x 20" 11.00-20"	8.0 x 20" 11.00-20"	8.25 x 22.5" 12-22.5"
Maximum width	2,500	2,500	2,500
Track Front	2,027	2,027	2,027
Track rear	1,820	1,820	1,820
Overall width over front wheels	2,455	2,455	2,455
Overall width over rear wheels	2,429	2,448	2,447

Weight in kg	B10M-55	B10M-60	B10M-65
Maximum front axle capacity	6,500	6,500	6,500
Maximum rear axle capacity	10,000	10,000	10,000
Maximum total weight Gross Vehicle Mass (GVM)	16,500	16,500	16,500

TOC

81 Specifications

ENGINE

Designation	THD100 DA	THD100 DC	THD100 DD
Output @ Speed (ISO 2534^*)	133 kW @ 37 r/s (180 HP @ 2,200 rpm)	178 kW @ 37 r/s (242 HP @ 2,200 rpm)	203 kW @ 37 r/s (276 HP @ 2,200 rpm)
Torque @ Speed (ISO 2534^*)	620 Nm @ 23 r/s (620 Nm @ 1,400 rpm)	886 Nm @ 23 r/s (886 Nm @ 1,400 rpm)	940 Nm @ 23 r/s (940 Nm @ 1,400 rpm)
Number of cylinders	6
Bore	120.65 mm
Stroke	140 mm
Displacement	9.6 dm³ (litres)
Compression ratio	15:1
Idle speed Comment: probable Volvo typo	7.9 - 8.8 r/s (47.5 - 52.5 rpm)
Maximum speed	40.8 - 42.5 r/s (2,450 - 2,550 rpm)
Valve system	Overhead
Valve clearance, engine cold
inlet valves	0.70 mm
outlet valves	0.70 mm

^*) Gross output and torque set at factory in accordance with BSAU 141a, ISO 2534 and SAE J270. Smoke requirements as per BSAU 141a, ECE reg, 24, Federal Register and Swedish requirements.

Lubrication system

Oil filter		Paper filter, throw-away type
Oil pressure, engine warm		300-500 kPa (3-5 bars)
Oil pressure, idling, minimum		50 kPa (0.5 bar)
Oil capacity		approx. 30 litres
Lubricant, type		Service CD (MIL-L-2104 C)
Viscosity,	below -10°C or when cold-starting difficulties can be anticipated	SAE 10 W, SAE 10 W/20, SAE 10 W/30 or SAE 15 W/40^*
	between -10°C and +20°C	SAE 20 W/20 or SAE 20 W/30 or SAE 15 W/40
	above +20°C	SAE 30 or SAE 20 W/30 or SAE 15 W/40

^*) SAE 15 W/40 only to be used to -20°C.

TOC

82 Specifications

Fuel system	THD100 DA	THD100 DC	THD100 DD
Injection pump, Bosch	PE 6P 110 A 320 RS 138	PE 6P 110 A 320 RS 229Z	PE 6P 110 A 320 RS 229Z
Injection pump, direction of rotation viewed from its coupling end	Clockwise	Clockwise	Clockwise
Injection sequence	1-5-3-6-2-4	1-5-3-6-2-4	1-5-3-6-2-4
Timing	23-24° B.T.D.C.	23-24° B.T.D.C.	23-24° B.T.D.C.
Fuel pump, Bosch	FP K22 P9	FP K22 P9	FP K22 P9
Feed pressure	60-100 kPa (0.6-1.0 bar)	60-100 kPa (0.6-1.0 bar)	60-100 kPa (0.6-1.0 bar)
Govenor, Bosch or WIX	RQV 250-1 100 PA 401/2R	RQV 250-1 100 PA 427/2R	RQV 250-1 100 PA 427/2R
Volvo reference	466987-5	466987-5	466987-5
Injector, holder, Bosch	KBL 112 S 21/13	KBL 112 S 21/13	KBAL 112 S 45/4
Injector, nozzle, Bosch	DLLA 150 S 178	DLLA 150 S 178	DLLA 150 S 762
Injector, opening pressure	17,5 MPa (175 bars)	17,5 MPa (175 bars)	17,5 MPa (175 bars)
Fuel tank capacity or or	180 litres 2x100 litres 300 litres	180 litres 2x100 litres 300 litres	180 litres 2x100 litres 300 litres

Fuel (diesel fuel oil)

Standards	SIS 155432, DIN 51601, CEC-ERF-D1 or ASTM-D 975-No 2-D
Firing response (cetane number)	minimum 45
Sulphur	0.5 weight % maximum

To counteract parafin wax deposits and ensure good startability in very cold weather, it is recommended to use the special fuel for winter. Alternatively to counteract parafin wax deposits you can also mix a minimum of 25% kerosene (paraffin oil) and up to 40% maximum. A greater percentage than this will cause wear problems because the lubricating ability of the fuel will be reduced.

The mixture of diesel oil is forbidden by law in some countries. If this is the case with regard to your market, use the additive approved by the authorities.

Cooling system

Type	Pressurised
Pressure valve opens at	50 kPa (0.5 bar)
Thermostats for cooling system (3) type	Wax
Thermostats marked	76 (one) 81 (two)
starts opening at	76°C and 81°C
fully open at	86°C and 91°C

TOC

83 Specifications

ELECTRICAL SYSTEM

Voltage	24V
Battery capacity	150Ah / 190Ah
Number of batteries	Two at 12V
Specific Gravity of battery electrolyte:
Fully charged battery	1.28
Battery should be re-charged at	1.23
Alternator	1.7 kW, 2.2 kW or 3.4 kW (60A, 80A or 120A)
Starter motor, output	4.5 kW (6 HP)

CLUTCH

Type	Single plate
Dimension	420 mm

GEARBOX

ZF S6-80 and ZF S6-80/GV80 (split), manual gearbox

Gear ratio		ZF S6-80	ZF S6-80/GV80 split
1^st gear		7.41:1	8.90/7.50:1
2^nd gear		4.27:1	5.13/4.32:1
3^rd gear		2.75:1	3.06/2.58:1
4^th gear		1.84:1	2.07/1.74:1
5^th gear		1.24:1	1.41/1.18:1
6^th gear		1.00:1	1.00/0.84:1
Reverse		6.96:1	8.37/7.05:1
Lubricant		Gearbox oil API-GL-4
Viscosity,	below -10° C	SAE 80 W/90¹
	between -10°C and +30° C	SAE 80 W/90² ou SAE 90²
	above +30° C	SAE 140 ou SAE 85 W/140
Oil change quantity		Approx. 13 litres for ZF S6-80 Approx. 15 litres for ZF S6-80/GV-80

¹)	SAE 75 W is recommended in extremely cold conditions.
²)	In the case of very arduous operation or long periods at high altitudes of more than 2,000 metres above sea level, SAE 140 or SAE 85 W/140 is recommended.

Voith 851 automatic transmission

Gear ratios, hydraulic stage		5.05 to 1.36:1
	2^nd stage	1.36:1
	3^rd stage	1.00:1
	Reverse	4.52:1
Lubricant		ATF-oil type DEXRON II
Oil capacity		Approx. 23 litres

TOC

84 Specifications

ZF 4 HP 500 et ZF 5 HP 500 automatic transmissions

	ZF 4 HP 500	ZF 5 HP 500
Reduction ratios, torque converter	2.4:1	2.4:1
1^st stage	2.81:1	2.81:1
2^nd stage	1.84:1	1.84:1
3^rd stage	1.36:1	1.36:1
4^th stage	1.00:1	1.00:1
5^th stage	-	0.80:1
Reverse	3.97:1	3.97:1
Lubricant	Engine oil SAE 10 W, API Service CC, CD, SC, SD ou SE (MIL-L-2104 C)
Oil change quantity	Approx. 15 litres (In case of refilling a dry transmission, oil cooler included - approx. 30 litres)

Allison MT 643, MT 644 and MT 654 CR automatic transmissions

	MT 643	MT 644	MT 654 CR
Reduction ratios in torque converter	1.8:1	2.2:1	2.2:1
1^st stage	3.58:1	3.58:1	4.17:1
2^nd stage	2.09:1	2.09:1	2.21:1
3^rd stage	1.39:1	1.39:1	1.66:1
4^th stage	1.00:1	1.00:1	1.27:1
5^th stage	-	-	1.00:1
Reverse	5.67:1	5.67:1	10.76:1
Lubricant	ATF-oil type DEXRON II
Oil change quantity approx.	13 litres	13 litres	14 litres

FINAL DRIVE

Gear ratio,	EV 80 B¹		3.78:1, 4.30:1. 4.87:1, 5.43:1 or 6.14:1
	EV 85 B²		3.78:1, 4.25:1, 4.87:1, 5.43:1 or 6.17:1
Lubricant			API-GL-5 (MIL-L-2105 A ou C)
Viscosity,	below -10° C		SAE 80 W/90 or SAE 80 W/140
	-10°C - +30° C		SAE 90 or SAE 80 W190³
	above +30° C		SAE 140 or SAE 85 W/140
Oil change quantity		EV 80 B	Approx. 9.5 litres
		EV 85 B	Approx. 12 litres

¹)	For buses with two axles
²)	For articulated buses
³)	In the case of very arduous operation or long periods at high altitudes of more than 2,000 metres above sea level, SAE 140 or SAE 85 W/140 is recommended.

TOC

85 Specifications

ALIGNMENT OF FRONT AXLE

Toe-in)	0-3 mm
Camber	1.5°
Caster	1°
King-pin inclination	5°

POWER-ASSISTED STEERING

Make and Model	ZF-8045
Reduction ratio, total	22.7:1
Pump pressure, maximum	100 bars
Lubricant	ATF-oil type DEXRON II
Oil change quantity	Approx. 0.5 litre

WHEELS AND TYRES

Rims	7.5 x 20"	8.0 x 20"	8.25 x 22.5"
Tyres	11.00-20"	11.00-20"	12-22.5"

NOTE: The tyre pressure must be adapted to the type of coach body which the bus has and the load on the respective axles.

TOC

86

This page left blank

TOC

87

This page left blank

TOC

88 Index

			Page
Air cleaner			22
Air pressure,	brake system		74
Air pressure,	tyres		76
Air reservoirs, brake system			74
Alternator			70
Anti-freeze			65
Automatic transmission,	driving		28, 31, 34
	lubricant		56, 58, 60
	oil change		57, 59, 61
	reduction ratios		83, 84

Batteries			70, 71
Bleed valves,	compressed air reservoirs		74
Bleed valves,	cooling system		66
Bleeding, fuel system			69
Blocking valve			9
Brakes, checking for air leaks			74
Brakes, maintenance			74
Bulbs, changing			71

Changing,	bulbs		71
	fuses		72
	wheels		77
Chassis number			78
Clutch			83
Cold starting			24, 51
Compressed-air brakes, maintenance			74
Compressed-air guage			8
Compressed-air tanks			74
Controls			4
Coolant			64
Cooling system			64

Daily checks			50
Diesel fuel			68, 82
Differential locking			37
Dimensions			80
Direction indicator lever			13
Driving tips (some advice)			41

Electrical system,	description		70
Electrical system,	maintenance		70
Electrolyte level, battery			71
Engine,	cooling system		64
	fuel system		68
	number		78
	oil change		53
	specifications		81
Exhaust brake			9, 26
Expansion tank, cooling system			64

Filters,	fuel system		69, 82
Filters,	lubrication system		53, 81
Final drive,	lubricant		62
	oil change		62
	reduction ratios		84
Fire warning system			21, 75
Fuel filter			69, 82
Fuel guage			17
Fuel system			68, 69
Fuses			72

Gear ratios,	final drive		84
Gear ratios,	gearbox		83, 84
Gear lever carrier			55
Gear-changing			26, 26, 27, 28, 31, 34
Gearshift			6
Glycol			65

Hand control, parking brake			8
Hand throttle			17
Headlight flasher			13
Headlight washers and headlight wipers			13

Ignition switch - start			7
Indicator/warning lamps,	battery charge		12
	brakes		8
	coolant		11
	direction indicators		13
	doors		15
	engine air temperature		14
	full beams		13
	luggage doors		15
	oil,	gearbox	16
	oil,	engine	10
	preheater		12
	rear view mirror heating		14
	retarder		20
	reversing lights		15
	STOP		14
Injection pump			69, 82
Instrument panel lighting			17
Instruments and controls			4

Lubricating oil,	final drive		62
	engine		52
	gearbox		62
	steering gear		54, 56, 58, 60
Lubricating oil filter			53
Lubricating, chassis			64
Lubrication, all-round			64

Maintenance			42
Maintenance plan			44
Manual transmission,	driving		26
	lubricant		54
	oil change		55
Measures in case of fire			21
Mirrors, electrically heated			14
Model number			78

TOC

89 Index

		Page
Oil,	final drive	62
	engine	52
	steering gear	54, 56, 58, 60
	transmission	62
Oil filter,	engine	53, 81
Oil filter,	power steering	63
Oil pressure, engine		10, 81

Parking brake		8
Power steering		63
Procedure before starting		23
Pressure-drop indicator		22
Pressure regulation		74

Relays		72
Retarder electromagnetic		20, 29, 33, 37
Running-in		23
Rustproofing		65

Service, after sales		42, 43
Specifications		79
Starter heater		12, 24
Starting the engine		24
Steering,	lubricant	63
Steering,	oil check	63
State of charge, batteries		83
Stop control button		7
Stopping the engine		26
Switches		4
System-Service		43

Tachograph		18, 19
Tachometer		16
Temperature guage		11
Towing		38, 39
Transmission,	gearbox operation	26, 27, 28, 31, 34
	lubricant	54, 56, 58, 60
	oil change	54, 56, 58, 60
	reduction ratios	83, 84
Turning circle diameter		80
Tyre inflation		40
Tyre inflation valve		38, 40
Tyres,	dimensions	85
	inflation pressure	76
	maintenance	76
	specifications	85

Warming up		25
Warning lamps, see "Indicator/warning lamps"
Warranty		42
Weight		80
Wheelbase		80
Wheels,	changing	77
	maintenance	76
	specifications	85
	twin mounting	77
Windscreen washer		13
Windscreen wipers		13

TOC

90 Lubricating scheme

ENGINE OIL

	ENGINE OIL
Quality	For Service CD
viscosity:	below -10°C or when cold-starting difficulties can be anticipated	SAE 10 W or SAE 10 W/20 or SAE 15 W/40 or SAE 10 W/30
	between -10°C and +20°C	SAE 20 W/20 or SAE 20 W/30 or SAE 15 W/40
	above +20°C	SAE 30 or SAE 20 W/30 or SAE 15 W/40

	FINAL DRIVE
Quality	API-GL-5 or 6
viscosity:	below -10°C	SAE 80 W/90 or 80 W/140
	between -10°C and +30°C	SAE 90 or 80 W/90¹
	above +30° C	SAE 140 or 85 W/140

	GEARBOX OIL
Quality	API-GL-4 for ZF gearbox, API-GL-1 for K 19
viscosity:	below -10°C	SAE 80 W/90² (or 80 W for K19)
	between -10°C and +30°C	SAE 90 or 80 W/90¹
	above +30° C	SAE 140 (or 85 W/140 for ZF)

	LUBRICANT
see the respective note after the chart

	LUBRICATING GREASE ON LITHIUM BASE WITH EP-ADDITIVE AND CONSISTENCY NL GI No. 2

	BRAKE FLUID, SAE J 1703 (DOT 3 or 4)

¹) In the case of very arduous operation or long periods of operation at high altitudes of more than 2,000 metres above sea level, SAE 140 or SAE 85 W/140 is recommended instead of SAE 90 or SAE 80 W/90 respectively.

²) SAE 75 W is recommended in extremely cold conditions for ZF gearbox, SAE 80 W for K 19

OIL CHANGING QUANTITIES
Engine, incl. oil filter		approx. 30 litres
Transmissions,	ZF S6-80, manual	approx. 13 litres
	ZF S6-80/GV80, manual	approx. 15 litres
	Voith 851 automatic transmission	approx. 23 litres
	ZF 4 HP 500, ZF 5 HP 500, fully automatic	approx. 15 litres
	Allison MT643, MT644, fully automatic	approx. 13 litres
	Allison MT 654, fully automatic	approx. 14 litres
Final drive	EV80B	approx. 9.5 litres
	EV85B	approx. 12 litres
Power-assisted steering		approx. 5 litres

TOC

91 Lubricating scheme

LUBRICATING SCHEME FOR VOLVO B10M

Intervals

Lubrication^* and level checks: 5,000 km

Oil, grease and filter changes: See respective note after chart.

Notes to lubricating scheme

Note 1	Lubricate the moving parts on the brake valve pedal shaft with some drops of engine oil.
Note 2	Grease with 3 grammes temperature-resistant grease (e.g. SHELL Alvania 2 or SHELL Dolium R or corresponding) every 80,000 km.
Note 3	Grease sparingly with universal grease in lithium base.
Note 4	Fill the lubricator and screw it down so hard that it does not loosen.
Note 5	On buses with electric retarder, four.
Note 6	On buses with electric retarder, four.
Note 7	On buses with electric retarder, one under the retarder.
Note 8	Check that the container is half way full of fluid. Top-up if necessary by referring to Page 64.
Note 9	Change the filter every 80,000 km. When topping-up, use ATF-oil, type DEXRON II.
Note 10	Use ATF-oil.
Note 11	Change the oil every 80,000 km or once a year. Use gear oil SAE 90.
Note 12	The grease in the wheel bearings must only be replaced in connection with work on the bearings or if dirt has got in when the bearings are exposed. Clean the bearings and hub thoroughly and grease in according to the instructions in the Service Manual with a long-life grease for wheel bearings, that is so to say lubricating grease with a lithium-lead base and NLGI N^o. 2 consistency.
Note 13	Check the oil level when filling with fuel. Change the oil and filter every 10,000 km.
Note 14	Check the oil level. Change the oil every 40,000 km or at least once per year.
Note 15	Concerning oil and oil-change intervals, see Pages 64-67.
Note 16	Check the oil level. Change the oil every 40,000 km or at least once per year.

^*) Lubricating interval: 5,000 km if lubricating grease on lithium base with EP-additive and consistency NLGI No. 2, e.g., molybdenum desulphide grease is used. The interval is 2,500 km if, for example, chassis grease is used.

TOC

92 Wiring diagram

WIRING DIAGRAM B10M

Note: Applicable for Chassis Numbers 503 through 4853 without Service Bulletin 3-38-08.

The letters and numbers in parentheses represent the coordinates of the component part.

	Battery	G2, G3
6	Connector, 6-unit
12	Connector, 12-unit
20	Connector, 37-unit
32	Circuit card, electrical distribution centre	F3
33	Circuit card, indicator/warning lights	A2
34	Connector	F3
37	Terminal, earth connection
52	Fuse holder, 2-unit	G1
53	Fuse holder, 3-unit	G3
60	Fuse holder, 14-unit	F1
100	Switch, headlights	K2
101	Switch, fullbeams and dipped beams	B1
115	Switch, instrument panel light	C1
119	Switch, windscreen wipers	B1
120	Switch, windscreen washer	B1
123	Switch, heated rearview mirror	K2
125	Switch, exhaust brake	C3
126	Switch, diff. lock, wheels, rear	C2
144	Switch, main circuit switch at batteries	G2
147	Switch, direction indicators	B1
149	Switch, horn	B1
150	Switch, starter switch	B2
151	Switch, eddy-retarder	D2
153	Switch, starter heater	C1
159	Switch, bulb failure warning light	C1
160	Switch, stop engine	C2
161	Switch, cold start	C1
175	Switch, level control	C1
176	Switch, splitter gearbox	C3
177	Switch, el. main circuit switch at batteries	K3
195	Selector lever, Allison	K1
200	Break contact, warning light, parking brake	C1
202	Break contact, warning light, oil pressure	H2
207	Closing contact, indicator light, diff. lock, rear wheels	J3
215	Closing contact, warning light, tachograph	C2
216	Closing contact, stop lights	C1
217	Closing contact, reversing lights	J2
222	Closing contact, warning light, temp. torque converter	H2
223	Slip contact, horn	A1
233	Closing contact, warning light, coolant	K2
238	Closing contact, thermal	H2
248	Closing contact, engine compartment temp.	H2
251	Break contact, splitter gearbox	K1
305	Relay, reversing lights	K2
306	Relay, fullbeams	E2
307	Relay, dipped beams	E2
309	Relay, parking lights	E2
312	Relay, starter heater	F3
316	Relay, solenoid, starter motor	G1
320	Relay, main circuit switch at batteries	G2
322	Relay, coolant level	E2
323	To flasher unit	K2
325	Step relay, fullbeams and dipped beams	E3
328	Charging regulator	G2
331	Relay, eddy-retarder	J2
333	Time relay, starter heater	E3
334	Relay, horn	E1
342	Relay, main circuit switch at batteries	H3
345	Relay, start inhibitor	E1
349	Relay, battery charging warning light	E1
351	Relay, cold start	G1
354	Relay, starting position	E1
361	Relay, operation of main circuit switch at batteries	F2
383	Relay, engine compartment fan	G1
381	Relay, splitter gearbox	C3
400	Bulb, fullbeams and dipped beams	K2
408	Bulb, parking light (left, front)	K2
409	Bulb, parking light (right, front)	K2
431	Bulb, instrument panel light	K2
500	Indicator light, dir. indicator, tractor	B2
503	Warning light, oil pressure, engine	B3
504	Indicator light, fullbeams	B2
505	Warning light, battery charging	B3
507	Warning light, service brakes	B2
508	Warning light, parking brake	B3
512	Warning light, temp. torque converter	B3
523	Warning light, tachograph	C2
526	Indicator light, eddy-retarder	B2
528	Indicator light, starter heater	B3
530	Indicator light, heated rearview mirror	B2
532	Indicator light, reversing lights	B3
540	Warning light, oil level	B3
541	Warning light, gearbox temp.	B3
542	Warning light, door brake	B3
543	Warning light, lids, luggage and engine compartments	B2
544	Warning light, engine compartment temp.	B2
545	Indicator light, STOP, bus stop	B2
546	Warning light, opening doors	B2
547	Central warning for indicator and warning lights	D1
554	Warning light, coolant temp.	B2
555	Warning light, coolant level	B3
601	Solenoid valve, diff. lock, rear wheels	J1
603	Solenoid valve, engine stop	J1
629	Solenoid valve, cold start	J1
642	Solenoid valve, splitter gearbox	J1
643	Solenoid valve, level control	J2
650	Windscreen wiper motor	K2
651	Windscreen washer motor	K2
654	Starter motor	H2
655	Alternator 60A/80A	H3
660	Alternator and charging regulator 120A	H3
665	Engine compartment fan	H2
700	Speedometer	C2
701	Tachograph	C2
703	Tachometer	C1
704	Pressure gauge, air	C1
706	Thermometer	C1
707	Fuel gauge	C1
753	Speed sender, engine	H1
756	Temperature sender, coolant	H1
757	Fuel gauge sender	H1
758	Speed sender, gearbox	H1
762	Oil temperature sender, gearbox	H1
763	Level sender, oil	H2
800	Starter heater	F3
806	Resistance	C1
807	Eddy retarder control	D2
810	Electrically heated air drier	J2
850	Horn	K2
853	Buzzer	D1
903	Diode	F2, D2
903	Shunt	G2
950	Electric coils, eddy-retarder	J2
1002	Cable harness, tachograph	C2
1011	Cable harness, direction indicators	A1
1012	Cable harness, windscreen wipers	A1
1014	Cable harness, starting switch	A2
1030	Cable harness, engine	H1
1033	Cable harness, eddy-retarder	D3
1035	Cable harness, diff-lock	B3
1039	Cable harness, splitter gearbox	B3
1040	Cable harness, frame	G1
1052	Cable harness, dashboard - electrical distribution centre	D1
1053	Cable harness, el. box	G1

TOC

93 Wiring diagram

Note: Applicable from Chassis Number 503 to 4853 without Service Bulletin 3-38-08.
